Get Historical Data

  • Description

    This interface allows users to retrieve historical data. (There is a frequency limit; each IP should not exceed 5 times per second. If exceeded, the IP may be blocked by the NG proxy.)

  • Request Address

    URL:[Host Server]/hs/v2/hdata/get

  • Address Parameter Description

    Field Type Description
    Host Server string See Explanation of terms

  • Method

    POST

  • Header

    Field Type Description
    Authorization string "Bearer " + Access_token obtained in login interface

  • Body

    Field Type Description
    type int 0: By row (time1: data for entry 1, data for entry 2, time2: data for entry 1, data for entry 2,...)
    format int 0: JSON, 1: CSV file
    ids Array List of channel IDs under historical entries
    names Array Historical entry names (only used for header in export function)
    g int 0: Raw data, 1: Segmented data, 2: Hourly data, 3: Daily data
    begin dateTime Start time (JavaScript timestamp, milliseconds since 1970-1-1)
    end dateTime End time (same as above)
    tr int Time condition boundary type (0: left open right open, 1: left open right closed, 2: left closed right open, 3: left closed right closed. Left indicates start time, right indicates end time)
    limit int Maximum number of data points to retrieve. Negative value indicates retrieving limit points from end time to start time. The result will display in ascending order . Maximum limit is 1000, recommended is 500
    tz string Linux time zone string (eg., Asia/Shanghai), specifying the time zone of imported CSV

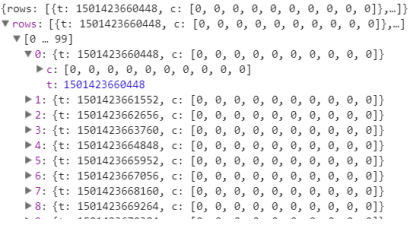

  • Successful Response

    t
    Note
    t represents the Linux epoch time, c is the array of returned data, which corresponds to the channels 1, 2, 3, 4, 5, 6, 7... in order of the channels that user sent.

  • Response Codes

    Code Description
    200 Successful execution
    401 Access token expired
    400 Error message in the HTTP Header [X-FBox-Code],see Appendix Three for details
    404 Interface does not exist, please check the URL
    429 Access to the interface so frequently ,see 429 Statues code

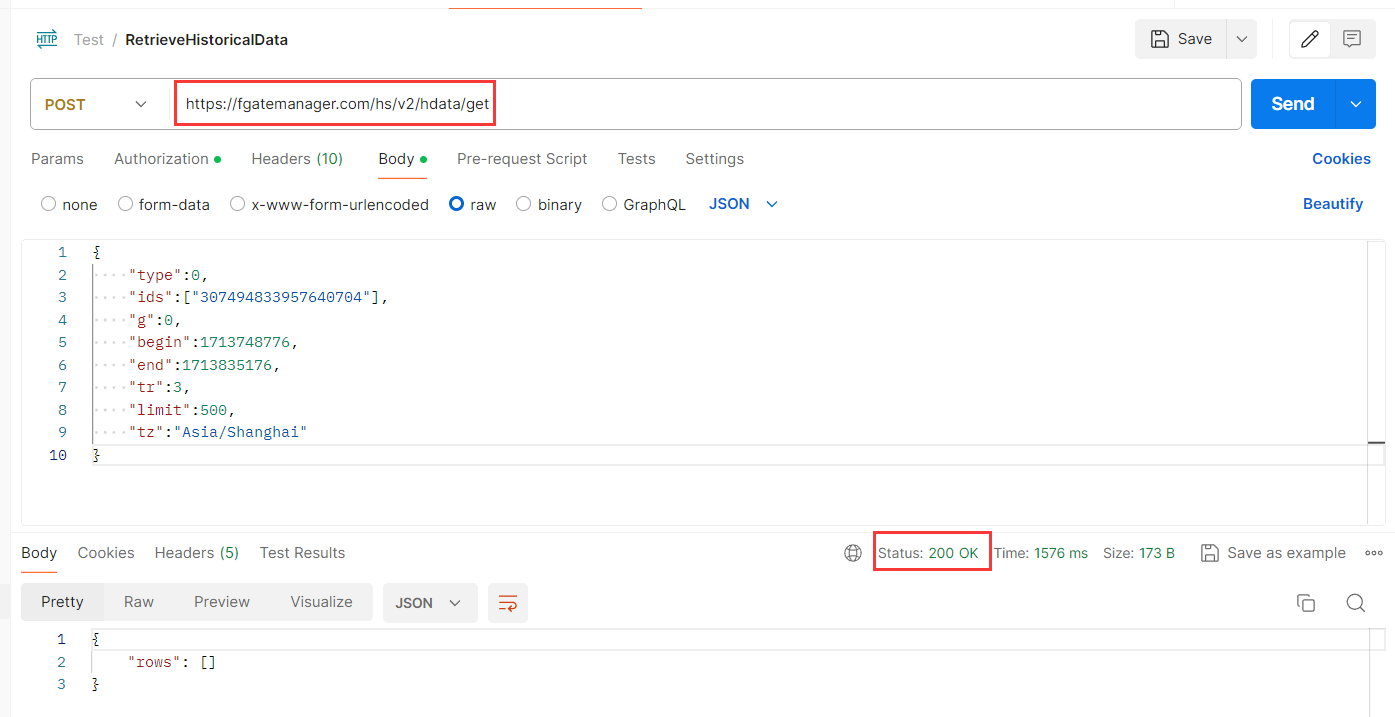

  • Postman example is as follows:

Login Interface

  • Please see the example in the following image.

Login Interface
