Add Historical Record

• Request URL

  URL1: [Host Server]/api/v2/box/{boxId}/hdataitems

  URL2: [Host Server]/api/v2/hdataitems/?boxNo={boxNo}

• Query Parameters

  Field	Type	Description
  Host Server	string	See Explanation of terms
  boxId	Long	Find it in Get FGate list interface: boxRegs->box->id
  boxNo	string	Serial number of FGate

• Method

  PUT

• Headers

  Field	Type	Description
  Authorization	string	"Bearer " + Access Token obtained from the login interface

• Body

  Collection of historical records for multiple channels, with the following attributes:

  Field	Type	Description
  name	string	Name of Datalog Entry
  period	int	Sampling Cycle, unit: s, range: 1-86400
  channels	array	Channel Collection, individual attributes are as follow
  hasctrl	bool	Whether to enable. If enabled, enable configuration needs to be set.
  ctrl	object	Enable Configuration Attributes

  Channel Individual Attributes:

  Field	Type	Description
  name	string	Channel Name
  unit	string	Channel Unit
  desc	string	Channel Description
  intDigits	int	Channel Integer
  fracDigits	int	Channel Decimal Part
  devAlias	string	Device Driver Alias
  station	int	PLC Communication Station Number
  dataType	int	Data type, see Appendix Two for details. Binary, hexadecimal, and string types are not supported.
  regId	int	Register ID, used in conjunction with ioWidth to determine a unique register.
  ioWidth	int	Register Bit Width, used in conjunction with regId to determine a unique register.
  regName	string	Register Name, which can uniquely identify a register. Either of the above two parameters can be selected
  addr	int	PLC main address
  subAddr	int	PLC sub-address
  addrBlk	int	PLC DB block address
  valueTransform	jobject	Numeric Operation Settings
  executeOnEdge	boolean	Enable Edge Execution, numeric operation must be configured when enabled.

  Value operation settings detailed table

  Field	Type	Description
  maxValue	int	Upper Limit of Value
  minValue	int	Lower Limit of Value
  scaleMaxValue	int	Upper Limit of Scale
  scaleMinValue	int	Lower Limit of Scale
  gain	int	Gain
  offset	int	Offset
  type	int	1: Proportional Conversion, 2: Scaling

  Enable Configuration Attributes

  Field	Type	Description
  ctrlType	int	Enable Option: 0 for Disable, 1 for Enable.
  devAlias	string	PLC Alias (device alias in remote download).
  station	int	Station Number
  dataType	int	Data type, see Appendix Two for details.
  regId	int	Register ID, used in conjunction with ioWidth to determine a unique register.
  ioWidth	int	Register Bit Width, used in conjunction with regId to determine a unique register.
  regName	string	Register Name, which can uniquely identify a register. Either of the above two parameters can be selected
  addr	int	PLC main address
  subAddr	int	PLC sub-address
  addrBlk	int	PLC DB block address

• Successful Response

  Return the UID primary key of the added historical record entry.

• Return Code

  Field	Description
  200	Request Successfully
  401	Access Token Expired
  404	The interface doesn't exist,please check URL.
  400	Error message in the HTTP header[X-FBox-Code], see Appendix Three for details.
  429	Access the interface so frequently. See 429 Status code

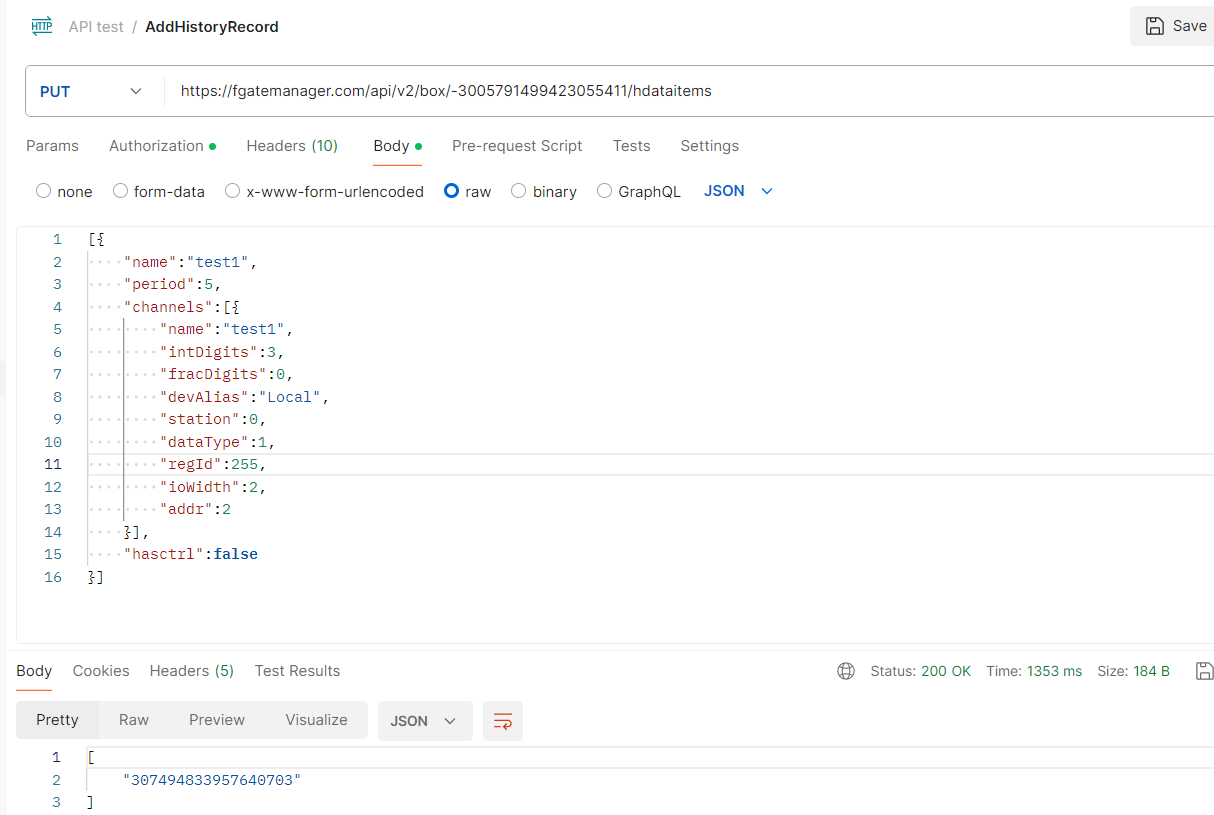

• Postman example is as follows:

• Please see the example in the following image.
