Add Monitoring Group

  • Description

    This interface can be used by users to add data monitoring groups.

  • Request URL

  • URL:[Host Server]/api/dmon/def/group

    Query Parameters

    Field Type Description
    Host Server string See Explanation of terms

  • Method

    PUT

  • Headers

    Field Type Description
    Authorization string "Bearer " + Access Token obtained from the login interface

  • Body

    Field Type Description
    name string Monitor Point Group Name
    boxUid string FGate Id

  • Successful Response

    Return the group ID (groupId) of the added group, not in JSON format.

  • Return Code

    Field Description
    401 Access Token Expired
    400 Incorrect FGate uid
    404 The interface does not exist. Please check the URL.
    409 This name has already existed. .
    500 Failed to access interface.

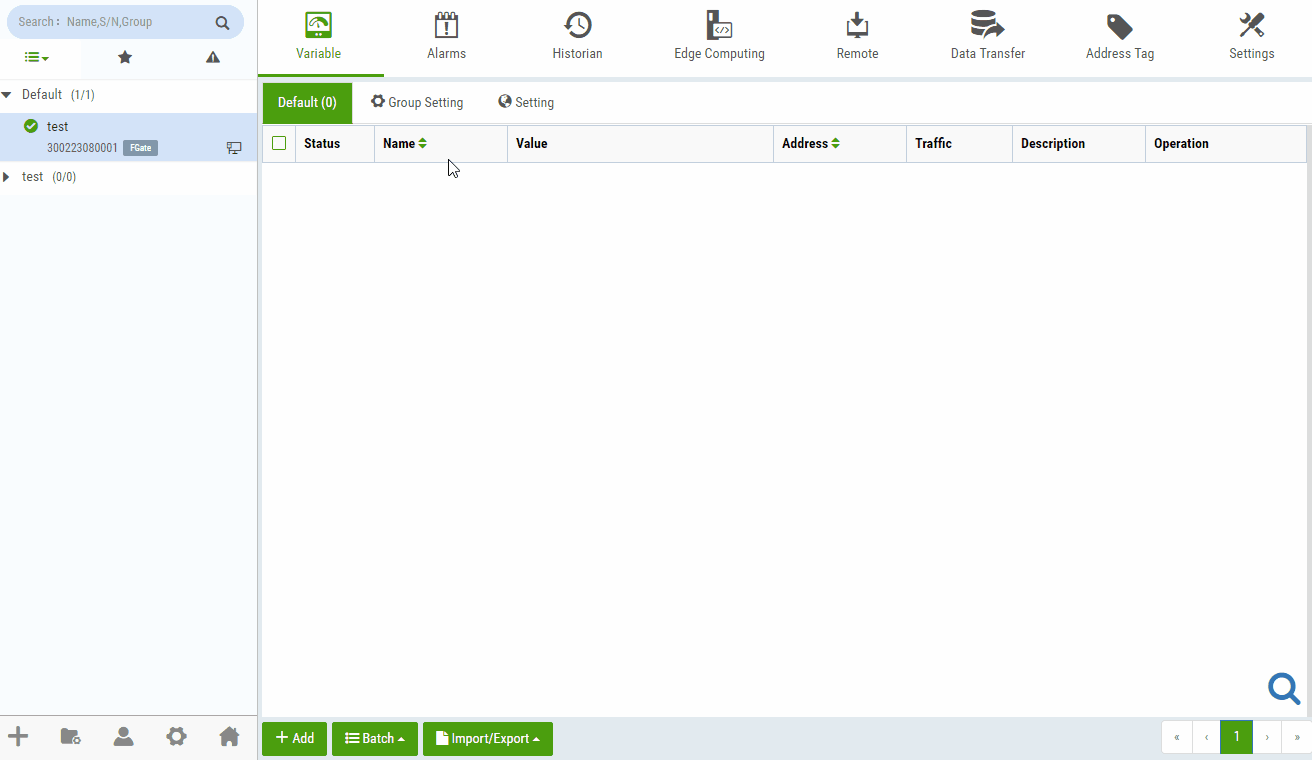

  • Please see the example in the following image.
