FGate Monitoring List
Description
This interface is used for users to obtain an array (JSON array) of all monitoring groups under the current FGate.
Request Address: (Choose one)
URL1:
[Host Server]/api/v2/box/{boxId}/dmon/groupedURL2:
[Host Server]/api/v2/box/dmon/grouped?boxNo={boxNo}Address Parameter Description
Field Type Description Host Server string See Explanation of terms Uid Long Find it in Get FGate list interface: boxRegs->box->id boxNo string FGate serial number Method
GETHeaders
Field Type Description Authorization string "Bearer " + Access Token obtained from the login interface Body
NULLSuccess Response
Field Type Description id string Monitoring point group ID name string Monitoring point group name items json array Monitoring point array, single attribute as follows Monitoring point attributes are as follows:
Field Type Description id string Monitoring point ID name string Monitoring point name grpId string Monitoring point group ID grpName string Monitoring point group name devAlias string Device alias station int PLC communication station number dataType int Data type, see Appendix Two for details regId int Register ID, used in conjunction with ioWidth to determine a unique register ioWidth int Register bit width, used in conjunction with regId to determine a unique register regName string Register name, can determine a unique register, optional with the above two parameters addr int PLC main address subAddr int PLC sub-address addrBlk int PLC DB block address intDigits int Integer part (currently invalid), invalid for bit types, binary, hexadecimal, and string types fracDigits int Decimal places unit string Unit, only valid for word types privilege int Read-write mode 2: write-only mode, 4: read-only mode, 6: read-write mode trafficSaving Boolean Whether to enable traffic saving mode, true: enabled, false: not enabled deadValue float Dead zone value, data within ±deadValue range is not pushed label json object Label for bit type,while value = 1,display ttext; while value = 0,display as ftext. memo string Remarks encoding int Encoding format, used for string , 0: non-string types, 1: Unicode, 2: Ascii stringByteOrder int String byte order, valid when encoded in Ascii format: 0: descend order, 1: ascend order charCount int Number of characters (only valid for string types) deviceChanged Boolean Whether the device has been removed (This parameter only appears while removed, status is true) This parameter appears while connected device changed . tstate int Offline task flag, 0: not executed, 1: successful execution, 2: execution failed, 3: firmware not supported valueTransform jobject Numeric Calculation settings executeOnEdge boolean Whether to enable edge execution. When enabled, numeric Calculation must be configured Detailed table of value transformation settings
Field Type Description maxValue int Maximum value minValue int Minimum value scaleMaxValue int Scale maximum value scaleMinValue int Scale minimum value gain int Gain offset int Offset type int 1: proportional conversion, 2: scaling Return Codes

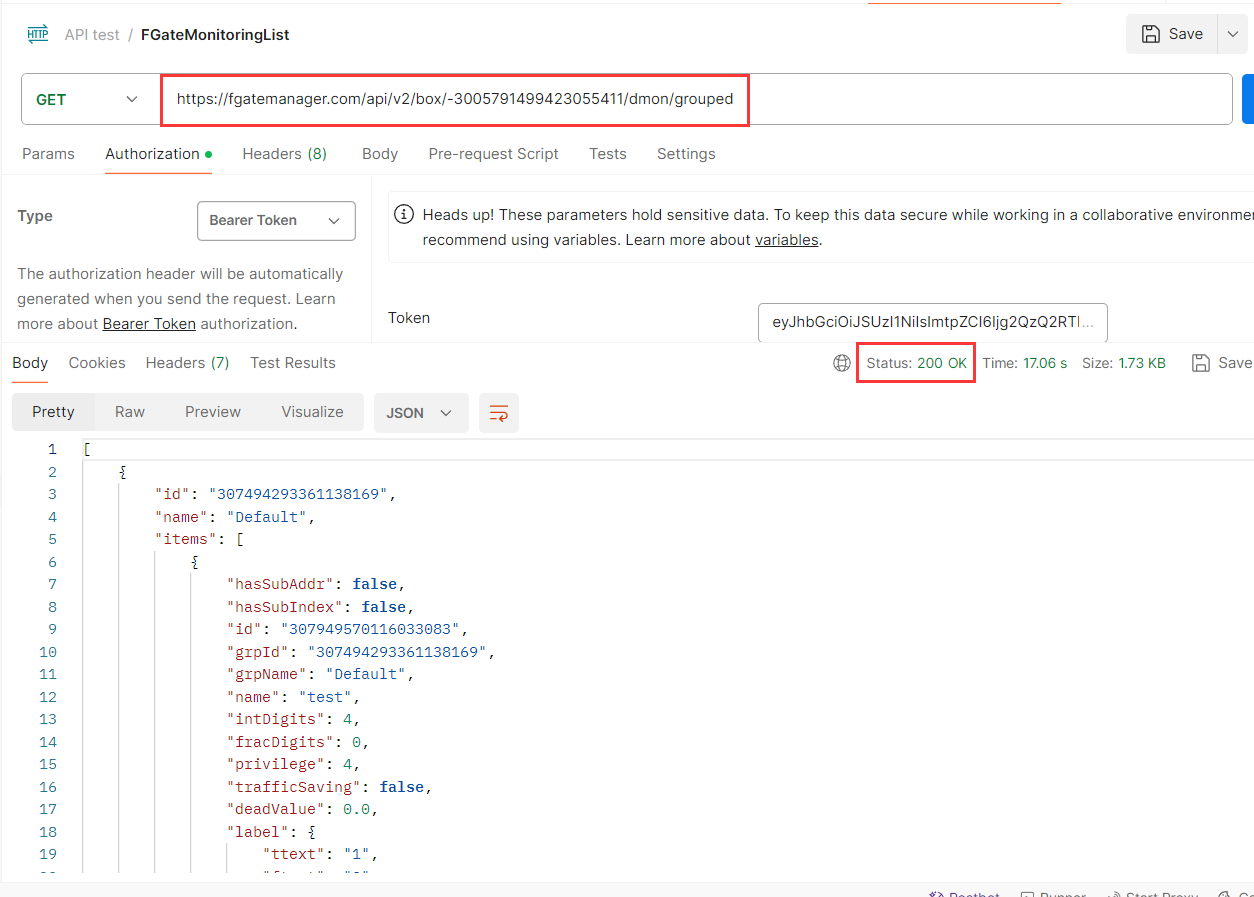

Field Description 200 Execution succeeded 401 Access token expired 404 The interface does not exist, please check the URL 429 Access interface too frequently, 429 Status code 400 Error message in HTTP Header [X-FBox-Code],see Appendix Three for details Postman example is as follows:
