Get Historical Alarm

• Description

  Retrieve alarm records of FGate alarm (all or some code) within a certain period (with frequency limitation, not exceeding twice per second for each IP; exceeding a certain frequency will result in IP being blocked by the Ng proxy).

• Request Address

  URL:[Host Server]/api/v2/box/{boxId}/alarm/data

• Address Parameter Description

  Field	Type	Description
  Host Server	string	See Explanation of terms
  boxId	long	Find it in Get FGate list interface: boxRegs->box->id

• Method

  GET

• Headers

  Field	Type	Description
  Authorization	string	"Bearer " + Access Token obtained from the login interface

• Body （Request，QueryString）

  Field	Type	Description
  beginTime	long	Start time (milliseconds), long type UTC timestamp unix epoch
  endTime	long	End time (milliseconds), long type UTC timestamp unix epoch
  name	string	Code of the alarm item, unnecessary if querying all
  limit	int	Limit on the number of records, recommended usage is 500. A negative value is to query alarm before the time period.

• Successful Response

  Returns a collection of data within the time period, in a left-closed and right-open set

  Field	Type	Description
  t	string	Timestamp, unix epoch
  i	string	Alarm item ID
  a	int	Type: 0 for none, 1 for triggered, 2 for confirmed, 3 for restored
  n	string	Alarm item code
  m	string	Alarm information
  v	string	Value

• Response Codes

  Field	Description
  200	Execution successful
  401	Access token expired
  400	Error message in HTTP Header [X-FBox-Code],see Appendix Three for details
  404	The interface does not exist, please check the URL

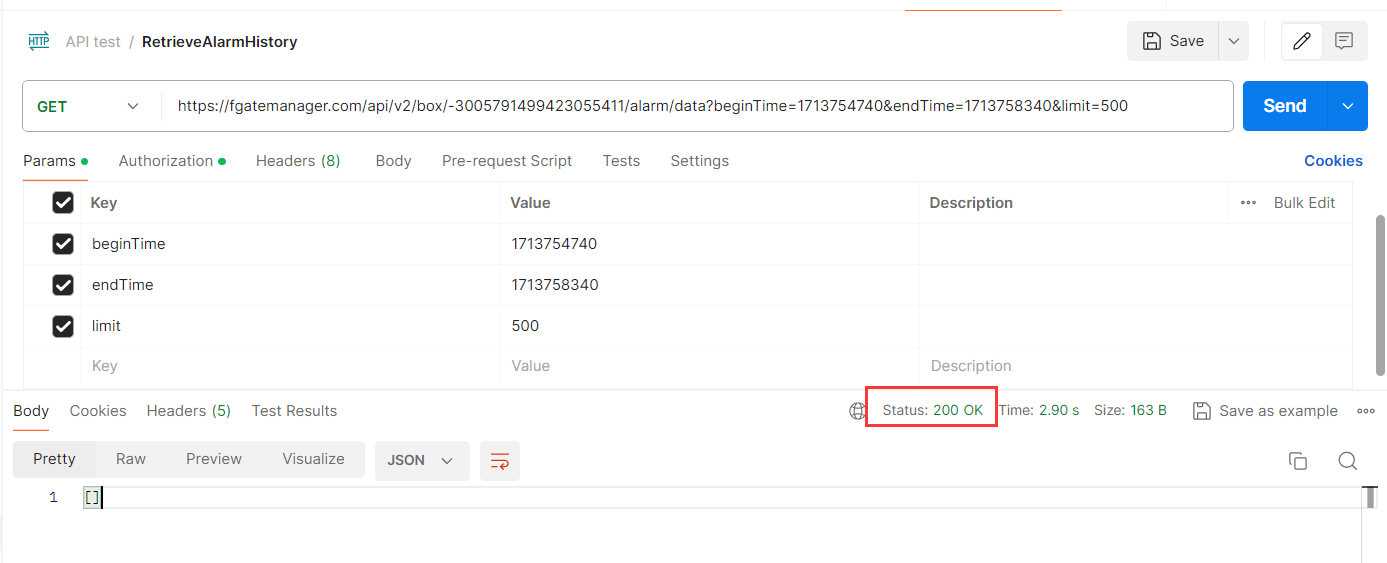

• Postman example is as follows:

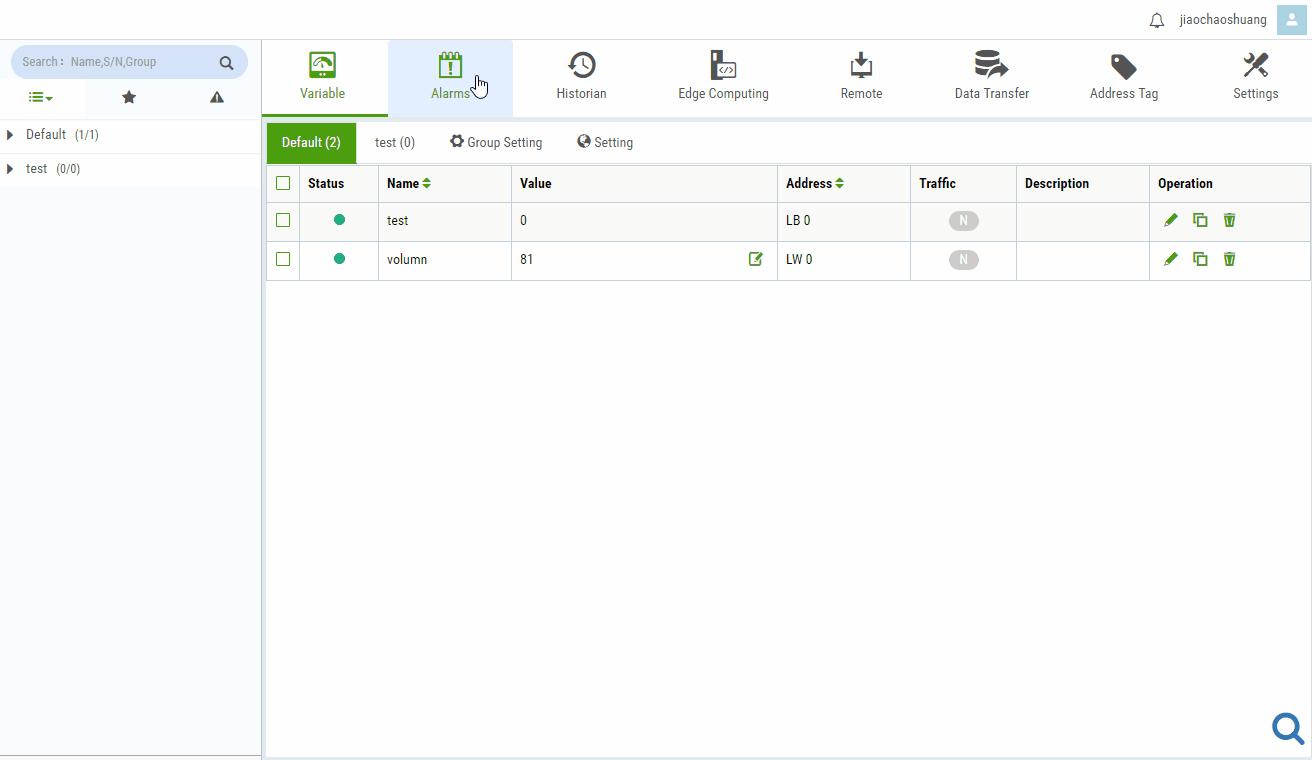

• Please see the example in the following image.
